ScalarArrayRange#

class named_arrays.ScalarArrayRange(start, stop, axis, step=1)#

Bases: AbstractParameterizedScalarArray, AbstractArrayRange[ScalarStartT, ScalarStopT]

An AbstractScalarArray over the range [start, stop) incremented by step. An analog to numpy.arange().

ScalarArrayRange can be used to create a ScalarArray of integers.

import named_arrays as na
x = na.ScalarArrayRange(1, 8, axis = "x")
print(x.explicit)
print(x.shape)

ScalarArray(
    ndarray=[1, 2, 3, 4, 5, 6, 7],
    axes=('x',),
)
{'x': 7}

Note above that x does not include stop, and won’t in almost all cases. ScalarArrayRange can be used to create an increasing ScalarArray of floats, even with non integer steps.

x = na.ScalarArrayRange(-0.5, 3, "x", 0.25)
print(x.explicit)

ScalarArray(
    ndarray=[-0.5 , -0.25,  0.  ,  0.25,  0.5 ,  0.75,  1.  ,  1.25,  1.5 ,  1.75,  2.  ,  2.25,  2.5 ,  2.75],
    axes=('x',),
)

For the above, and more complicated uses, it is recommended to use ScalarLinearSpace instead. See numpy documentation of numpy.arange() for more info.

Attributes

`axes`	A `tuple` of `str` representing the names of each dimension of this array.
`axes_flattened`	Combine `axes` into a single `str`.
`axis`
`broadcasted`	if this array has multiple components, broadcast them against each other.
`dtype`	Data type of the array.
`explicit`	Converts this array to an instance of `named_arrays.AbstractExplicitArray`.
`indices`	Compute the index of each element of this array.
`length`	L2-norm of this array.
`ndarray`	Underlying data that is wrapped by this class.
`ndim`	Number of dimensions of the array.
`num`	Number of elements in the parameterization
`range`
`shape`	The number of elements along each axis of the array.
`size`	Total number of elements in the array.
`start`
`step`
`stop`
`to_xarray`	Cast `ScalarArray` to a `xarray.DataArray`.
`type_abstract`	The `named_arrays.AbstractArray` type corresponding to this array.
`type_explicit`	The `named_arrays.AbstractExplicitArray` type corresponding to this array.
`unit`	Unit associated with the array.
`unit_normalized`	Similar to `unit` but returns `astropy.units.dimensionless_unscaled` if `ndarray` is not an instance of `astropy.units.Quantity`.
`value`	Returns a new array with its units removed, if they exist.

Methods

`__init__`(start, stop, axis[, step])
`add_axes`(axes)	Add new singleton axes to this array.
`all`([axis, where])	Return `True` if all of the elements along the given axes are `True`.
`any`([axis, where])	Return `True` if any of the elements along the given axes are `True`.
`astype`(dtype[, order, casting, subok, copy])	Copy of the array cast to a specific data type.
`broadcast_to`(shape[, append])	A new view of this array with the specified shape.
`cell_centers`([axis, random])	Convert an array from cell vertices to cell centers.
`change_axis_index`(axis, index)	Change the position of an axis in this array.
`combine_axes`([axes, axis_new])	Combine some of the axes of the array into a single new axis.
`copy`()	Create a deep copy of this array.
`copy_shallow`()	Create a shallow copy of this array.
`filter_median`(shape_kernel[, mode])
`index`(value[, axis])
`index_secant`(value[, axis])
`interp_linear`(item)	Linearly interpolate this array to find its value at the given fractional index.
`matrix_determinant`(axis_rows, axis_columns)
`matrix_inverse`(axis_rows, axis_columns)
`matrix_multiply`(other, axis_rows, axis_columns)
`max`([axis, initial, where])	The maximum value of this array along the given axes.
`mean`([axis, where])	The mean value of this array along the given axes.
`mean_trimmed`([q, axis])	Compute the trimmed mean along the specified axes.
`median`([axis])	The median value of this array along the given axes.
`min`([axis, initial, where])	The minimum value of this array along the given axes.
`ndarray_aligned`(axes)	Align `ndarray` to a particular sequence of axes.
`ndindex`([axis_ignored])	An iterator that yields the index of each element of this array.
`percentile`(q[, axis, out, overwrite_input, ...])	The requested percentile of this array along the given axes.
`ptp`([axis])	The peak-to-peak value of this array along the given axes.
`replace`(**changes)	A method version of `dataclasses.replace()` for named arrays.
`reshape`(shape)	Reorganize this array into a new shape.
`rms`([axis, where])	The root-mean-square of this array along the given axes.
`std`([axis, where])	The standard deviation of this array along the given axes.
`sum`([axis, where])	The sum of each element of this array along the given axes.
`take_along_axis`(indices, axis)	Take values from this array by matching `indices` along `axis`.
`to`(unit[, equivalencies, copy])	Convert this array to a new unit.
`to_string`([prefix, multiline])	Convert this array instance to a string representation.
`to_string_array`([format_value, format_unit, ...])	Convert to an array of strings where each string has an appropriately-formatted unit attached to the value.
`to_value`(unit[, equivalencies])	The numerical value of this array, possibly in a different unit.
`transpose`([axes])	Reorder the axes of this array to the given sequence.
`var`([axis, where])	The variance of this array along the given axes.
`vmr`([axis, where])	The variance-to-mean ratio of this array along the given axes.
`volume_cell`(axis)	Computes the n-dimensional volume of each cell formed by interpreting this array as a logically-rectangular grid of vertices.

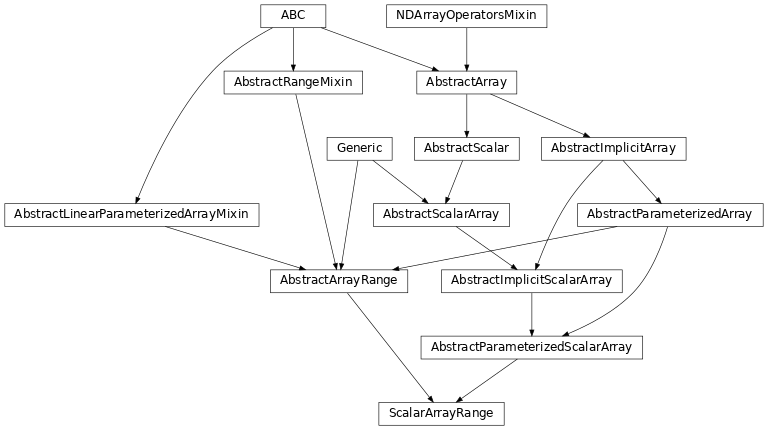

Inheritance Diagram

Parameters:

start (StartT)
stop (StopT)
axis (str | AbstractArray)
step (int | float | AbstractArray)

add_axes(axes)#

Add new singleton axes to this array.

Parameters:

axes (str | Sequence[str]) – Either a single axis name or a sequence of axis names add to this array.
self (Self)

Return type:

ScalarArray

See also

named_arrays.add_axes(): A functional version of this method.

all(axis=None, where=<no value>)#

Return True if all of the elements along the given axes are True.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.all(): A functional version of this method.

any(axis=None, where=<no value>)#

Return True if any of the elements along the given axes are True.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.any(): A functional version of this method.

astype(dtype, order='K', casting='unsafe', subok=True, copy=True)#

Copy of the array cast to a specific data type.

Equivalent to numpy.ndarray.astype().

Parameters:

self (Self)
dtype (str | dtype | Type)
order (str)
subok (bool)
copy (bool)

Return type:

ScalarArray

broadcast_to(shape, append=False)#

A new view of this array with the specified shape.

Parameters:

shape (dict[str, int]) – The shape of the new array.
append (bool) – If True, shape will be appended to the current shape of this array before broadcasting.
self (Self)

Return type:

Self

See also

named_arrays.broadcast_to(): A functional version of this method.

cell_centers(axis=None, random=False)#

Convert an array from cell vertices to cell centers.

Parameters:

axis (None | str | Sequence[str]) – The axes of the array to average over.
random (bool) – If true, select a random point within each cell instead of the geometric center.

Return type:

AbstractExplicitArray

change_axis_index(axis, index)#

Change the position of an axis in this array.

Parameters:

axis (str) – The name of the logical axis to modify.
index (int) – The new index of the logical axis.
self (Self)

Return type:

ScalarArray

combine_axes(axes=None, axis_new=None)#

Combine some of the axes of the array into a single new axis.

Parameters:

axes (None | Sequence[str]) – The axes to combine into a new axis
axis_new (None | str) – The name of the new axis
self (Self)

Return type:

Array with the specified axes combined

copy()#

Create a deep copy of this array.

Parameters:: self (Self)
Return type:: Self

copy_shallow()#

Create a shallow copy of this array.

Parameters:: self (Self)
Return type:: Self

filter_median(shape_kernel, mode='reflect')#

Parameters:

self (Self)
shape_kernel (dict[str, int])
mode (str)

index(value, axis=None)#

Parameters:

self (Self)
value (Self)
axis (None | str | Sequence[str])

Return type:

dict[str, Self]

index_secant(value, axis=None)#

Parameters:

self (Self)
value (Self)
axis (None | str | Sequence[str])

Return type:

dict[str, Self]

interp_linear(item)#

Linearly interpolate this array to find its value at the given fractional index.

Parameters:

item (dict[str, Self]) – A fractional index at which to evaluate the array.
self (Self)

Return type:

Self

matrix_determinant(axis_rows, axis_columns)#

Parameters:

self (Self)
axis_rows (str)
axis_columns (str)

Return type:

ScalarArray

matrix_inverse(axis_rows, axis_columns)#

Parameters:

self (Self)
axis_rows (str)
axis_columns (str)

Return type:

ScalarArray

matrix_multiply(other, axis_rows, axis_columns)#

Parameters:

self (Self)
other (AbstractScalar)
axis_rows (str)
axis_columns (str)

Return type:

ScalarArray

max(axis=None, initial=<no value>, where=<no value>)#

The maximum value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
initial (ArrayLike) – The initial value of the minimum, required if where provided.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.max(): A functional version of this method.

mean(axis=None, where=<no value>)#

The mean value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.mean(): A functional version of this method.

mean_trimmed(q=0.25, axis=None)#

Compute the trimmed mean along the specified axes.

Parameters:

q (float) – The fraction of the largest and smallest elements to remove. Must be between 0 and 1/2. If the specified fraction does not result in an integer number of elements, the number of elements to trim is rounded down.
axis (None | str | Sequence[str]) – The axis or axes along which to compute the trimmed mean.

Return type:

Self

See also

mean_trimmed()

median(axis=None)#

The median value of this array along the given axes.

Parameters:: axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.

See also

numpy.median(): A functional version of this method.

min(axis=None, initial=<no value>, where=<no value>)#

The minimum value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
initial (ArrayLike) – The initial value of the minimum, required if where provided.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.min(): A functional version of this method.

ndarray_aligned(axes)#

Align ndarray to a particular sequence of axes.

Parameters:

axes (Sequence[str]) – New sequence of axes to align ndarray to.
self (Self)

Return type:

An instance of numpy.ndarray with the axes aligned.

ndindex(axis_ignored=None)#

An iterator that yields the index of each element of this array.

Parameters:

axis_ignored (None | str | Sequence[str]) – The of the array to ignore when generating the iterator.
self (Self)

Return type:

Iterator[dict[str, int]]

See also

named_arrays.ndindex(): A functional version of this method.

percentile(q, axis=None, out=None, overwrite_input=False, method='linear', keepdims=False)#

The requested percentile of this array along the given axes.

Parameters:

q (int | float | Quantity | Self) – The percentile to compute.
axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
out (None | Self) – An optional output array in which to place the result.
overwrite_input (bool) – Whether to overwrite the input array.
method (str) – How to interpolate the result.
keepdims (bool) – A boolean flag indicating whether to keep the reduced dimensions.
self (Self)

See also

numpy.percentile(): A functional version of this method.

ptp(axis=None)#

The peak-to-peak value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
self (Self)

Return type:

Self

See also

numpy.ptp(): A functional version of this method.

replace(**changes)#

A method version of dataclasses.replace() for named arrays.

Parameters:: changes – The fields of the dataclass to be overwritten
Return type:: Self

reshape(shape)#

Reorganize this array into a new shape.

Parameters:

shape (dict[str, int]) – The new shape of the array, must be compatible with this array.
self (Self)

Return type:

Self

rms(axis=None, where=<no value>)#

The root-mean-square of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

std(axis=None, where=<no value>)#

The standard deviation of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.std(): A functional version of this method.

sum(axis=None, where=<no value>)#

The sum of each element of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.sum(): A functional version of this method.

take_along_axis(indices, axis)#

Take values from this array by matching indices along axis.

Parameters:

indices (AbstractArray) – The integer indices to take along axis.
axis (str) – The axis of this array along which the values are taken.
self (Self)

Return type:

Self

See also

named_arrays.take_along_axis(): A functional version of this method.

to(unit, equivalencies=[], copy=True)#

Convert this array to a new unit.

Equivalent to astropy.units.Quantity.to().

Parameters:

unit (Unit) – New unit of the returned array
equivalencies (None | list[tuple[Unit, Unit]]) – A list of equivalence pairs to try if the units are not directly convertible.
copy (bool) – Boolean flag controlling whether to copy the array.
self (Self)

Return type:

ScalarArray

to_string(prefix=None, multiline=None)#

Convert this array instance to a string representation.

Parameters:

prefix (None | str) – the length of this string is used to align the output
multiline (None | bool) – flag which controls if the output should be spread over multiple lines.

Return type:

array represented as a str

to_string_array(format_value='%.2f', format_unit='latex_inline', pad_unit='$\\,$')#

Convert to an array of strings where each string has an appropriately-formatted unit attached to the value.

Parameters:

format_value (str) – The string used to format the numeric value of each element.
format_unit (str) – The string used to format the units of each element.
pad_unit (str) – The string used to add horizontal space between the value and unit.

to_value(unit, equivalencies=[])#

The numerical value of this array, possibly in a different unit.

Equivalent to astropy.units.Quantity.to_value().

Parameters:

unit (UnitBase) – New unit of the returned array
equivalencies (None | list[tuple[Unit, Unit]]) – A list of equivalence pairs to try if the units are not directly convertible.
self (Self)

Return type:

Self

transpose(axes=None)#

Reorder the axes of this array to the given sequence.

Parameters:

axes (None | Sequence[str]) – The new axis ordering of this array.
self (Self)

Return type:

Self

See also

numpy.transpose(): The numpy version of this method.

var(axis=None, where=<no value>)#

The variance of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.var(): A functional version of this method.

vmr(axis=None, where=<no value>)#

The variance-to-mean ratio of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.

volume_cell(axis)#

Computes the n-dimensional volume of each cell formed by interpreting this array as a logically-rectangular grid of vertices.

Note that this method is usually only used for sorted arrays.

If self is a scalar, this method computes the length of each edge, and is equivalent to numpy.diff(). If self is a 2d vector, this method computes the area of each quadrilateral, and if self is a 3d vector, this method computes the volume of each cuboid.

Parameters:: axis (None | str | tuple[str]) – The axis or axes defining the logically-rectangular grid. If self is a physical scalar, there should only be one axis. If self is a physical vector, there should be one axis for each component of the vector.
Return type:: AbstractScalar

property axes: tuple[str, ...]#

A tuple of str representing the names of each dimension of this array.

Must have the same length as the number of dimensions of this array.

property axes_flattened: str#

Combine axes into a single str.

This is useful for functions like numpy.flatten() which returns an array with only one dimension.

axis: str | AbstractArray = <dataclasses._MISSING_TYPE object>#

property broadcasted: AbstractExplicitArray#

if this array has multiple components, broadcast them against each other.

Equivalent to a.broadcast_to(a.shape).

property dtype: dtype#: Data type of the array. Equivalent to numpy.ndarray.dtype

property explicit: AbstractExplicitArray#: Converts this array to an instance of named_arrays.AbstractExplicitArray.

property indices: dict[str, ScalarArrayRange]#

Compute the index of each element of this array.

See also

named_arrays.indices(): A functional version of this method.

property length: AbstractScalar#: L2-norm of this array.

property ndarray: int | float | complex | ndarray | Quantity#

Underlying data that is wrapped by this class.

This is usually an instance of numpy.ndarray or astropy.units.Quantity, but it can also be a built-in python type such as a int, float, or bool

property ndim: int#: Number of dimensions of the array. Equivalent to numpy.ndarray.ndim.

property num: int#: Number of elements in the parameterization

property range: AbstractArray#

property shape: dict[str, int]#: The number of elements along each axis of the array. Analogous to numpy.ndarray.shape but represented as a dict where the keys are the axis names and the values are the axis sizes.

property size: int#: Total number of elements in the array. Equivalent to numpy.ndarray.size

start: StartT = <dataclasses._MISSING_TYPE object>#

step: int | float | AbstractArray = 1#

stop: StopT = <dataclasses._MISSING_TYPE object>#

property to_xarray: DataArray#: Cast ScalarArray to a xarray.DataArray. Useful for saving to netcdf/zarr or using Dask.

property type_abstract: Type[AbstractScalarArray]#: The named_arrays.AbstractArray type corresponding to this array.

property type_explicit: Type[ScalarArray]#: The named_arrays.AbstractExplicitArray type corresponding to this array.

property unit: None | UnitBase#

Unit associated with the array.

If ndarray is an instance of astropy.units.Quantity, return astropy.units.Quantity.unit, otherwise return None.

property unit_normalized: UnitBase#: Similar to unit but returns astropy.units.dimensionless_unscaled if ndarray is not an instance of astropy.units.Quantity.

property value: ScalarArray#: Returns a new array with its units removed, if they exist.
